AgriMagP Plastic Mag Flow Meter 80mm :: No Moving Parts, 9-35V DC Powered LCD, Frequency Output

SKU: AGRIMAGP-80-MAN

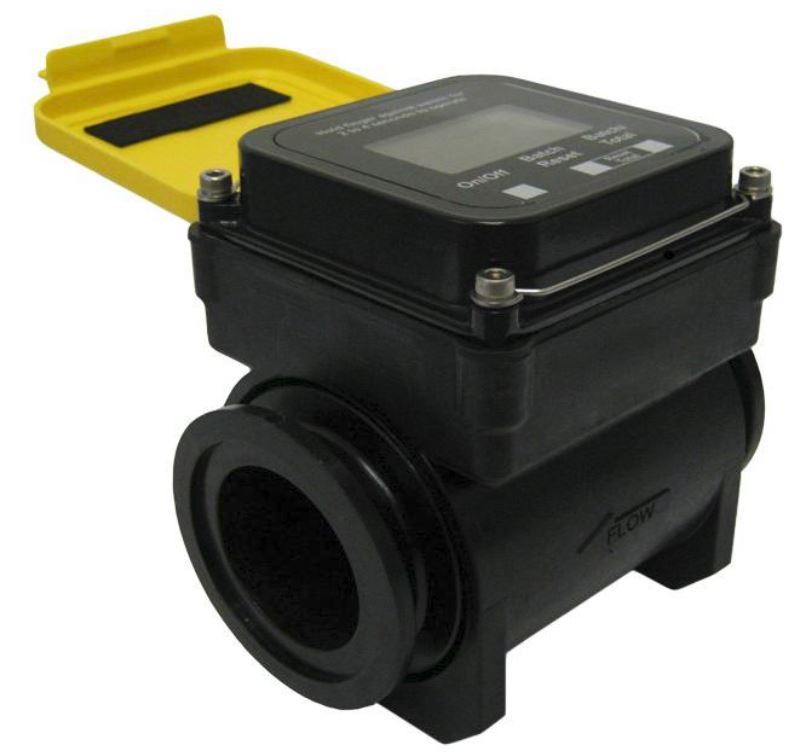

AgriMagP Digital Mag Flow Meter 80mm
No Moving Parts, Polypropylene Construction
9 -35V DC Powered Display : Rate & Total + reset
Frequency Output (Proprtional to Flow)

  • Fittings
  • £985.00
  • £1182.00 inc VAT
Qty:

Description

  • SKU
    AGRIMAGP-80-MAN

AgriMagP Digital Mag Flow Meter 80mm
No Moving Parts, Polypropylene Construction
9 -35V DC Powered Display : Rate & Total + reset
Frequency Output (Proprtional to Flow)
Flow Range 5 - 49 l/s (Full scale)
Accuracy +/- 1% of reading between 10-100% of full scale
Accuracy +/- 3% of reading between cut-off and10% of full scale

Ο No Moving Parts, Polypropylene Construction
Ο Display : Rate & Total + reset
Ο Frequency Output, Open collector proportional to flow 0-1000Hz for 0 - Qmax
Ο IP67 Rated
Ο 10 Bar (150 psi) Max Pressure
Ο 50 Degrees C Max Temperature
Ο Choice of connection types

The Agrimag is a low cost DC powered Electro-magnetic Flow Meter which has a full bore and no moving parts, so is very tolerant to debris and sediment etc. Suitable for water and any liquid with conductivity e 20 µS/cm (eg, water based)

Applications

Ο Irrigation and abstraction
Ο Pesticides & Fertilizers
Ο Dosing and Chemical addition
Ο Ground Water Measurement
Ο Water Monitoring & Control

Specification

Downloads
