AgriMagP2 Plastic Mag Flow Meter 50mm :: No Moving Parts, 9-35V DC Powered LCD, Data Logger, RS485, 4-20mA Output

SKU: AGRIMAGP2-50-MAN

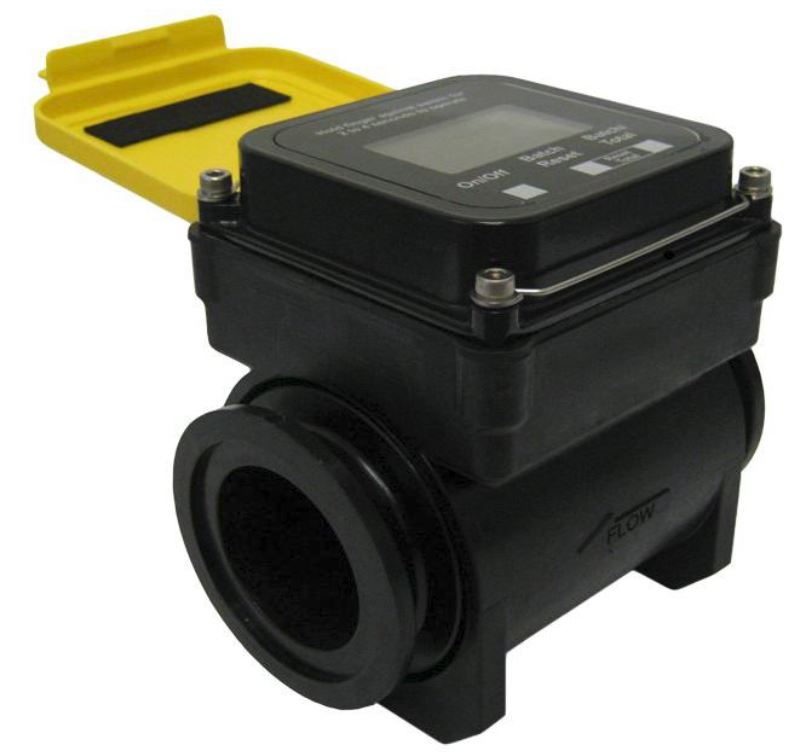

AgriMagP2 Digital Mag Flow Meter 50mm
No Moving Parts, Polypropylene Construction
9 -35V DC Powered Display : Rate & Total + reset
Data Logger, RS485, 4-20mA Output

  • Fittings
  • £936.50
  • £1123.80 inc VAT
Qty:

Description

  • SKU
    AGRIMAGP2-50-MAN




AgriMagP2 Digital Mag Flow Meter 50mm
No Moving Parts, Polypropylene Construction
9 -35V DC Powered Display : Rate & Total + reset
Data Logger, RS485, 4-20mA Output
Flow Range 1.9 - 18.9 l/s (Full scale)
Accuracy +/- 1% of reading between 10-100% of full scale
Accuracy +/- 3% of reading between cut-off and10% of full scale

Ο No Moving Parts, Polypropylene Construction
Ο 9-35V DC Supply
Ο Display : Rate & Total + reset
Ο 4-20mA Current loop output
Ο RS485 Modbus RTU Outputt
Ο IP67 Rated
Ο 10 Bar (150 psi) Max Pressure
Ο 50 Degrees C Max Temperature
Ο Choice of connection types

The Agrimag is a low cost DC powered Electro-magnetic Flow Meter which has a full bore and no moving parts, so is very tolerant to debris and sediment etc. Suitable for water and any liquid with conductivity e 20 µS/cm (eg, water based)

Applications

Ο Irrigation and abstraction
Ο Pesticides & Fertilizers
Ο Dosing and Chemical addition
Ο Ground Water Measurement
Ο Water Monitoring & Control
