E110 Explosion proof flow rate/totaliser

SKU: E110-P-CX-HAA-IB-OT-PD-XD-ZB

Fluidwell E110
Explosion proof flow rate/totaliser
IP66/IP67 Aluminium enclosure
Pulse and analogue outputs
9-27vDC Powered
Pulse input
  • £831.04
  • £997.25 inc VAT
Qty:

Description

  • SKU
    E110-P-CX-HAA-IB-OT-PD-XD-ZB

Fluidwell E110
Explosion proof flow rate/totaliser
IP66/IP67 Aluminium enclosure
Pulse and analogue outputs
9-27vDC Powered
Pulse input

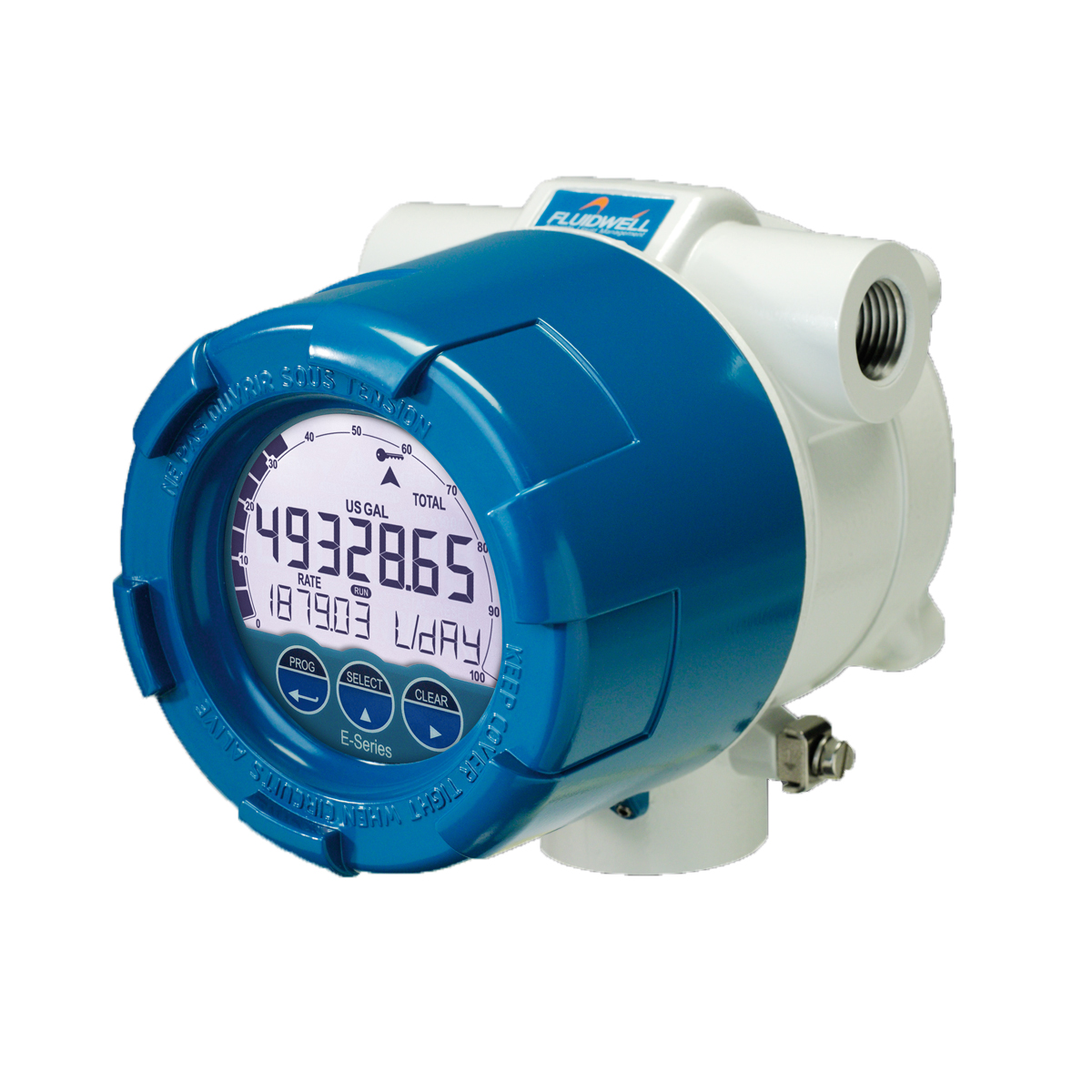

The Fluidwell E110 is an explosion proof flow rate/indicator with pulse and analogue outputs
Displays the actual flow rate, total, and accumulated total in user-selectable engineering units.
1x resettable total, 1x accumulated non-resettable total
Displays flow rate and total simultaneously
Pulse input model which accepts; Reed switch, NAMUR, NPN, PNP, Sine wave (coil), active pulse signal.
Aluminium Ex d enclosure offering IP66/IP67 (NEMA4X) protection
Explosion proof enclosure according to ATEX, IECEx, FM and CSA

Specification


    Pulse input model which accepts; Reed switch, NAMUR, NPN, PNP, Sine wave (coil), active pulse signal.
    Aluminium Ex d enclosure offering IP66/IP67 (NEMA4X) protection
    Explosion proof enclosure according to ATEX, IECEx, FM and CSA
    9-27vDC powered
    Backlight included as standard
    Easy to operate through though glass keypad
    Galvanically isolated, loop powered 4-20mA output
    Passive transistor output
