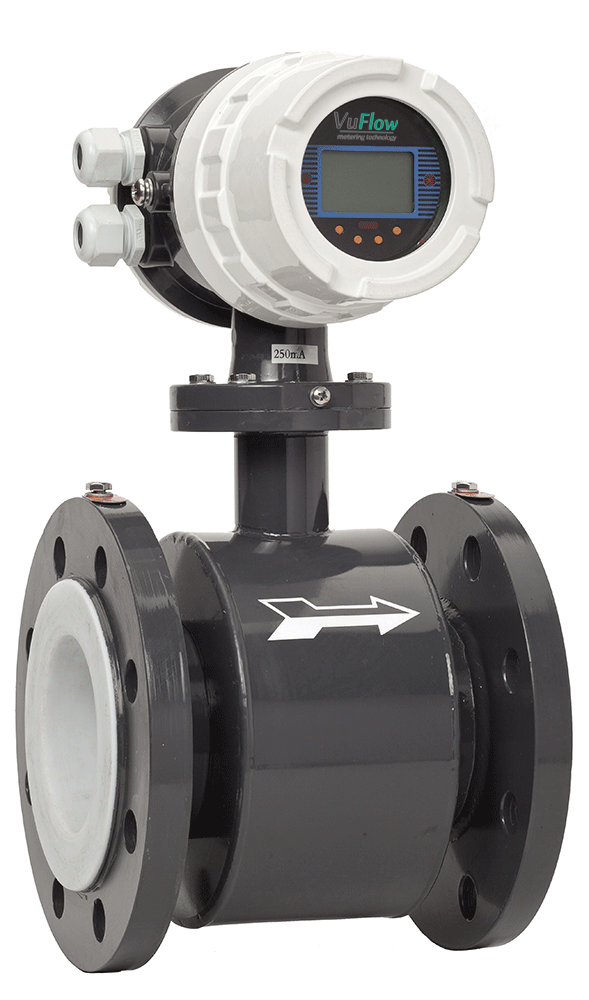

Electromagnetic Flow Meter:: DN300 Flange options, Rubber Liner (PTFE Option), AC / DC OPTIONS
ZoomCreated with Sketch.

Electromagnetic Flow Meter:: DN300 Flange options, Rubber Liner (PTFE Option), AC / DC OPTIONS

SKU: BMF-300-S-M-0-X-0-0-0-10

Electromagnetic Flow Meter:: DN300
Budget Model
Calibrated reliable performance
Power, Liner, Display, Electrode :: See options

  • COMBINATION
    DISPLAY COMPACT MOUNTED ~ STANDARD▾
    • DISPLAY COMPACT MOUNTED ~ STANDARD
    • DISPLAY REMOTE MOUNTED WITH 10M CABLE (+£88.00)
    • DISPLAY REMOTE MOUNTED WITH 20M CABLE (+£154.00)
    • DISPLAY REMOTE MOUNTED WITH 30M CABLE (+£220.00)
  • ELECTRODES
    STAINLESS STEEL 316 ~ STANDARD▾
    • STAINLESS STEEL 316 ~ STANDARD
    • TITANIUM (+£85.80)
    • TANTALUM (+£314.60)
    • HASTELLOY (+£129.80)
    • PLATINUM ( PRICES ON REQUEST)
    • NICKEL ( PRICES ON REQUEST)
  • OUTPUT SIGNAL
    NO OUTPUT ~ STANDARD▾
    • NO OUTPUT ~ STANDARD
    • 4-20mA and PULSE OUTPUT
  • LINER MATERIAL
    RUBBER ~ STANDARD▾
    • RUBBER ~ STANDARD
    • PTFE ( MAX 120 DEG C) (+£584.10)
    • PTFE ( SPECIAL 180 DEG C ,PRICES ON REQUEST, REMOTE MOUNT ONLY)
  • POWER SUPPLY
    110 - 240Vac ~ STANDARD▾
    • 110 - 240Vac ~ STANDARD
    • 18 - 36Vdc
  • COMMUNICATION
    NO COMMUNICATION ~ STANDARD▾
    • NO COMMUNICATION ~ STANDARD
    • MODBUS RS485 (+£48.95)
    • HART (+£209.00)
  • GROUNDING RINGS
    NO GROUNDING RING ~ STANDARD▾
    • NO GROUNDING RING ~ STANDARD
    • GROUNDING RING SS316 ,PRICES ON REQUEST
    • GROUNDING ELECTRODE (ONLY WITH ST ST ELECTRODES,PRICES ON REQUEST)
  • FLANGES
    DETECTOR WITH PN10 DN FLANGES ~ STANDARD▾
    • DETECTOR WITH PN10 DN FLANGES ~ STANDARD
    • DETECTOR WITH PN16 DN FLANGES (+£26.40)
    • DETECTOR WITH PN25 DN FLANGES (+£190.30)
    • DETECTOR WITH PN40 DN FLANGES (+£424.60)
  • £2334.20
  • £2801.04 inc VAT
Qty:
  • SKU
    BMF-300

Electromagnetic Flow Meter:: DN300
Budget Model
Calibrated reliable performance
Power, Liner, Display, Electrode options

The BMF range of Electromagnetic flow meters represent excellent value, offering a wide range of standard features and a selection of extra options. Supplied with multi-point calibration certificate and 12 month warranty as standard, these meters have a large installed user base and are the ideal choice when quality, reliability and cost of ownership are the major considerations

Features:

⊃ Rubber Liner (PTFE Option)
⊃ Tube: Austenitic Stainless Steel
⊃ Body: Polyurethane Coated Steel
⊃ Flanges: Carbon Steel or Stainless on request
⊃ Electrodes: 316L (See options)
⊃ Grounding Electrode option
⊃ Bi-Directional Flow Measurement
⊃ Empty Pipe Detection
⊃ Max Temperature: See options
⊃ Max Pressure: See Options
