B-MAG M5000 :: Battery Powered Mag Flow Meter

B-MAG | M5000
WRAS, OIML & MID Approved Class 1 and 2

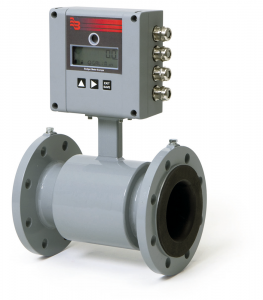

The M5000 Battery powered Electromagnetic flow meter series is designed to suit a wide range of applications where a power supply is not available

Bell Environmental meters are available with a single internal battery for up to 6 years service, or with a double internal battery for up to 20 years service. Alternatively these can be offered with AC or DC power with battery backup in the event of power failure, these Mag meters can be used in the most demanding conditions. Standard features include Hard Rubber liner, DN or ANSI flanged process connections, combined with Hastelloy C measuring & empty pipe electrodes. The meters M5000 amplifier delivers an accuracy better than 0.4% and includes an integrated data logger as well as a full range of outputs.

Items: 119 of 19
Drop items here to shop
Product has been added
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN15
    MID6 Battery Powered Electromagnetic Flow Meter :: DN15
    SKU: MID6-15
    MID6 Battery Powered Electromagnetic Flow Meter:: DN15
    Flow: 0.32 - 127 l/min
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1879.10
    £2254.92 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN20
    MID6 Battery Powered Electromagnetic Flow Meter :: DN20
    SKU: MID6-20
    MID6 Battery Powered Electromagnetic Flow Meter:: DN20
    Flow: 0.57 - 226 l/min
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1901.82
    £2282.18 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN25
    MID6 Battery Powered Electromagnetic Flow Meter :: DN25
    SKU: MID6-25
    MID6 Battery Powered Electromagnetic Flow Meter:: DN25
    Flow: 0.88 - 353 l/min
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1639.86
    £1967.83 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN32
    MID6 Battery Powered Electromagnetic Flow Meter :: DN32
    SKU: MID6-32
    MID6 Battery Powered Electromagnetic Flow Meter:: DN32
    Flow: 1.45 - 579 l/min
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1646.68
    £1976.02 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN40
    MID6 Battery Powered Electromagnetic Flow Meter :: DN40
    SKU: MID6-40
    MID6 Battery Powered Electromagnetic Flow Meter:: DN40
    Flow: 2.3 - 905 l/min
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1648.95
    £1978.74 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN50
    MID6 Battery Powered Electromagnetic Flow Meter :: DN50
    SKU: MID6-50
    MID6 Battery Powered Electromagnetic Flow Meter:: DN50
    Flow: 3.5 - 1414 l/min
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1671.66
    £2005.99 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN65
    MID6 Battery Powered Electromagnetic Flow Meter :: DN65
    SKU: MID6-65
    MID6 Battery Powered Electromagnetic Flow Meter:: DN65
    Flow: 6.0 - 2389 l/min
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1681.50
    £2017.80 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN80
    MID6 Battery Powered Electromagnetic Flow Meter :: DN80
    SKU: MID6-80
    MID6 Battery Powered Electromagnetic Flow Meter:: DN80
    Flow: 9.0 - 3619 l/min
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1689.07
    £2026.88 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN100
    MID6 Battery Powered Electromagnetic Flow Meter :: DN100
    SKU: MID6-100
    MID6 Battery Powered Electromagnetic Flow Meter:: DN100
    Flow: 14 - 5655 l/min
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1723.14
    £2067.77 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN125
    MID6 Battery Powered Electromagnetic Flow Meter :: DN125
    SKU: MID6-125
    MID6 Battery Powered Electromagnetic Flow Meter:: DN125
    Flow: 1.33 - 530 m3/hr
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1864.72
    £2237.66 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN150
    MID6 Battery Powered Electromagnetic Flow Meter :: DN150
    SKU: MID6-150
    MID6 Battery Powered Electromagnetic Flow Meter:: DN150
    Flow: 1.9 - 763 m3/hr
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £1994.18
    £2393.02 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN200
    MID6 Battery Powered Electromagnetic Flow Meter :: DN200
    SKU: MID6-200
    MID6 Battery Powered Electromagnetic Flow Meter:: DN200
    Flow: 3.4 - 1357 m3/hr
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £2332.60
    £2799.12 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN250
    MID6 Battery Powered Electromagnetic Flow Meter :: DN250
    SKU: MID6-250
    MID6 Battery Powered Electromagnetic Flow Meter:: DN250
    Flow: 5.3 - 2121 m3/hr
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £2660.42
    £3192.50 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN300
    MID6 Battery Powered Electromagnetic Flow Meter :: DN300
    SKU: MID6-300
    MID6 Battery Powered Electromagnetic Flow Meter:: DN300
    Flow: 7.6 - 3054 m3/hr
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £3458.39
    £4150.07 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN350
    MID6 Battery Powered Electromagnetic Flow Meter :: DN350
    SKU: MID6-350
    MID6 Battery Powered Electromagnetic Flow Meter:: DN350
    Flow: 10.4 - 4156 m3/hr
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £4359.33
    £5231.20 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN400
    MID6 Battery Powered Electromagnetic Flow Meter :: DN400
    SKU: MID6-400
    MID6 Battery Powered Electromagnetic Flow Meter:: DN400
    Flow: 14 - 5429 m3/hr
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £4750.75
    £5700.90 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN450
    MID6 Battery Powered Electromagnetic Flow Meter :: DN450
    SKU: MID6-450
    MID6 Battery Powered Electromagnetic Flow Meter:: DN450
    Flow: 17 - 6870 m3/hr
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £5164.88
    £6197.86 inc VAT
  • MID6 Battery Powered Electromagnetic Flow Meter :: DN500
    MID6 Battery Powered Electromagnetic Flow Meter :: DN500
    SKU: MID6-500
    MID6 Battery Powered Electromagnetic Flow Meter:: DN500
    Flow: 21 - 8482 m3/hr
    High accuracy and minimal pressure loss
    Flanged connections (DIN or ANSI)
    Choice of displays and output options
    Up to 10 year battery life (optional 20 year)
    Optional MID and OIML Approval
    £5622.16
    £6746.59 inc VAT
  • MID Verification device kit :: Mag Meter Verification Tool
    MID Verification device kit :: Mag Meter Verification Tool
    SKU: MID-VD-DB-02-1008
    Badger Meter Verificator
    Battery Powered unit
    Mag Flow Meter Site Verification tool
    Supplied in Case with Cables & Software
