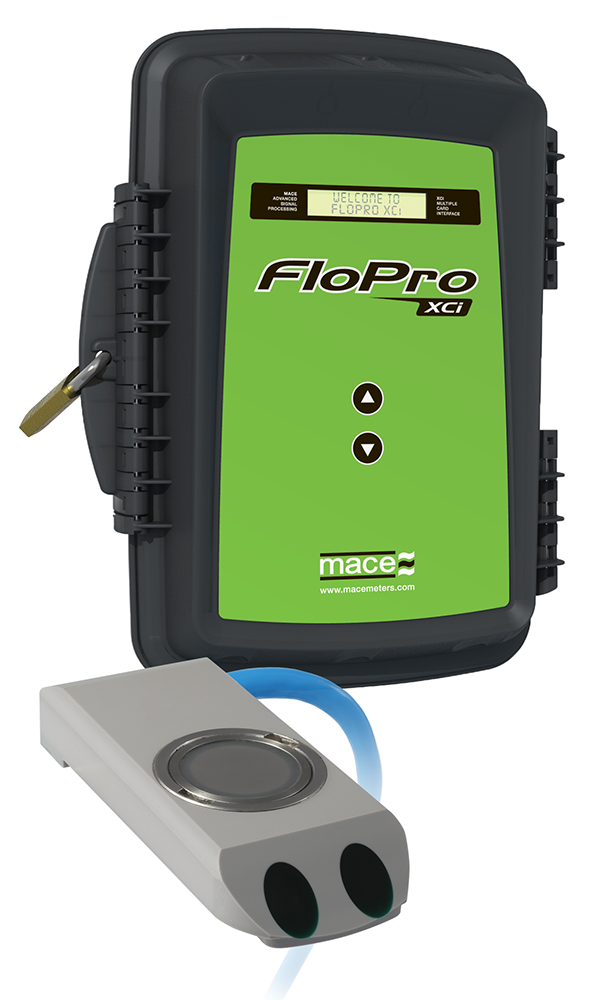

Mace FloPro XCI Area Velocity Flow Meter
Permanent area velocity flow meter
Sutiable for open channel and partial full Pipes
Multiple Cards for multiple sensor applications
Data logging and Telemetry options
MASP Technology for advanced signal processing

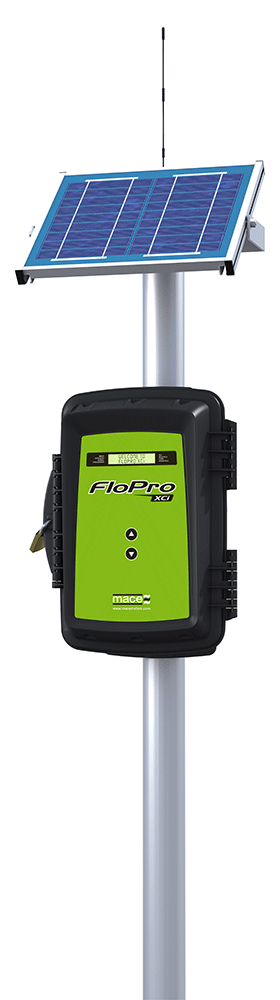

Mains, battery and solar powered options

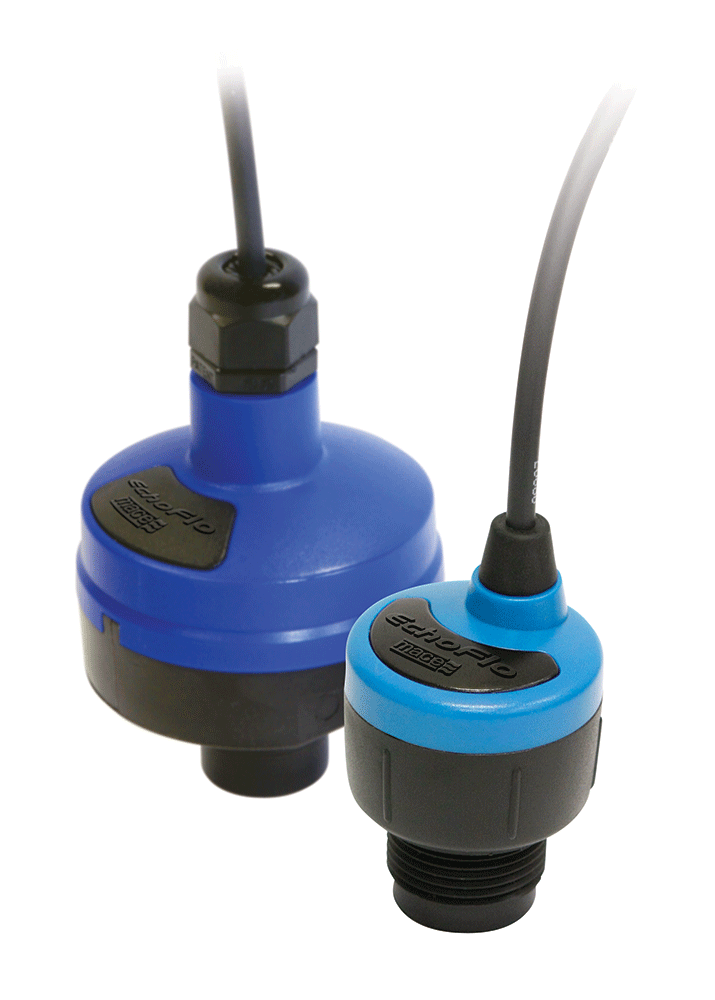

The FloPro XCi device integrates flow measurement and water quality monitoring sensors for vital mining, municipal and industrial equipment and assets. Whether you need to measure flow as well as conductivity, pH and rainfall, or utilize a downward looking ultrasonic depth sensor to measure pond levels, the FloPro is fully expandable for your needs. FloPro is easily interfaced to SCADA/telemetry systems allowing for remote data access.
Key Features of the FloPro XCI include -
♦ Multiple cards for multiple sensor applications
♦ Ready-to-go straight out of the box
♦ Remotely access data
♦ Easily configure with MACE FloCom+ Software

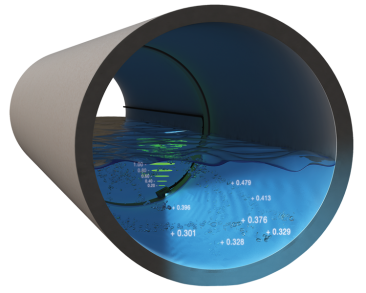

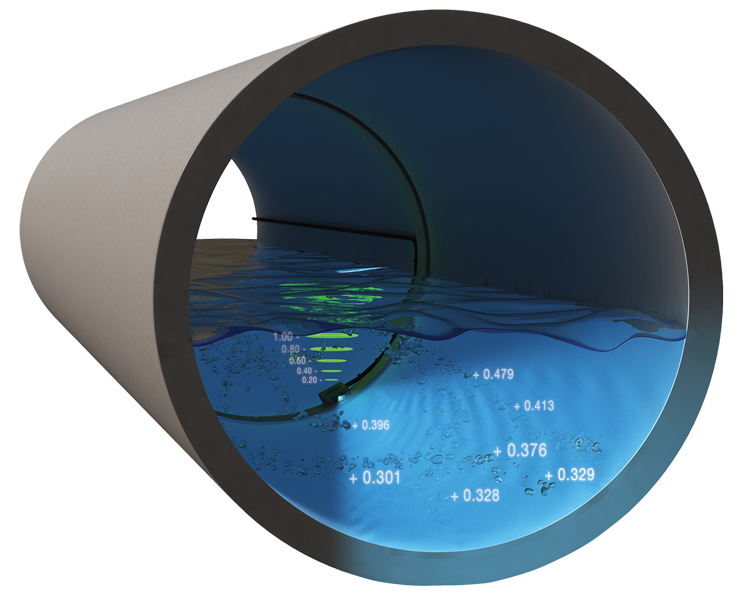

♦ True average velocity measurement with MASP Technology
Easily configure with MACE FloCom+ software
♦ Free configuration and diagnostic software
♦ Powerful, easy to use Windows® interface
♦ Painless point ‘n’ click channel calibration
♦ No proprietary coding knowledge required
Access your data remotely with MACE WebComm
Low tariff SIM card provided by us or use your own compatible card. No Web subscription, free access.
♦ MACE WebComm card for GSM/3G gives remote access to your data
♦ Card is powered by and housed in the FloPro XCi
♦ Data is pushed from your FloPro XCi device to the MACE Data Server where it is available for retrieval on your PC or smartphone
♦ SMS/Email alert subscription service available
Flume & weir equations built-in
Native support for:
♦ Rectangular weirs
♦ V-notch weirs
♦ Parshall flumes
♦ Replogle, Palmer-Bowlus flumes
♦ Lookup table for other rated structures
♦ Multiple instances of each flume/weir
FloSeries3 Cards for XCi devices
Add-on cards for flow metering, flow monitoring and data logging
XCi – Multiple cards for multiple sensor applications. The XCi platform is expandable and future proof, only add cards as and when you need them.

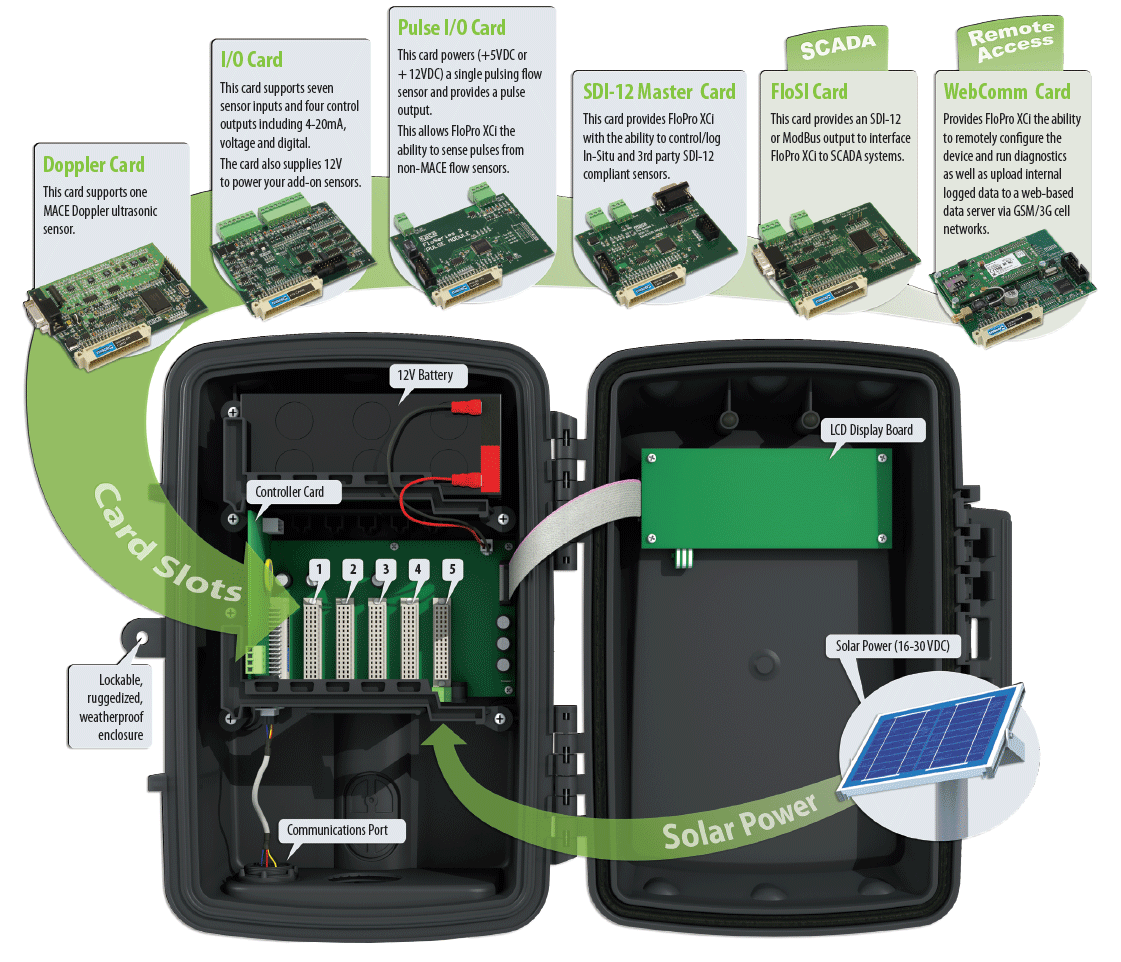

The XCi (multiple card interface) developed by MACE for the FloPro, AgriFlo and HydroMace allows the user to connect just about any sensor. Users can install any combination of the MACE FloSeries3 cards shown below, in the five available card slots of an XCi device. Choose the right card/s for your application to tailor the device to your exact monitoring requirements.
Doppler card
