Mainstream AV-Flow Transmitter

SKU: QT001/EN
High performance area velocity flow transmitter
Sutiable for open channels and partially full pipes
Quick to install - no flumes or weirs required
velocity range - 10mm/s to 5m/s
4-20ma / SDI-12 / GPRS output options available
ATEX Sensor option available

  • Level Sensor
  • Velocity Sensor
  • £3080.00
  • £3696.00 inc VAT
Qty:

Description

  • SKU
    QT001/EN
Mainstream Area Velocity transmitter

High performance area velocity transmitter
Suitable for open channels and partially full pipes
Quick to install - no flumes or weirs required
Velocity range - 10mm/s to 5m/s
4-20ma / SDI-12 / GPRS output options available
ATEX Sensor option available

The Mainstream area velocity transmitter offers a solution to those wanting to measure water velocity, level and flow  in an open channel / partially full pipe applications.

High Levels of performance

The sensor high sensitivity means the system can be used for a wide range of applications in waste water and even "clean" water applications. With a streamlined probe, the sensor is also able to eliminate fouling and reduces the flow disturbance. Signal quality monitors also offer verification of the data quality.

How does it work?

The Mainstream systems utilise the area velocity method of flow measurement, providing the user with a continuous or time stamped value of flow. Velocity measurement from the sensor is achieved by analysing transmitted and received ultrasound signal. The sensor creates a zone of inspection, here bubbles and solids particles in the water. These then provide a reflection of the ultrasound signal back to the velocity probe. The frequency shift in the ultrasonic signal between the transmitted frequency and that been received provides the flow velocity.

Liquid Level is also measured by a submerged pressure sensor or ultrasonic sensor. When the wetted cross sectional area for the channel / pipe and velocity are known the flow meter is then able to calculate flow rate.

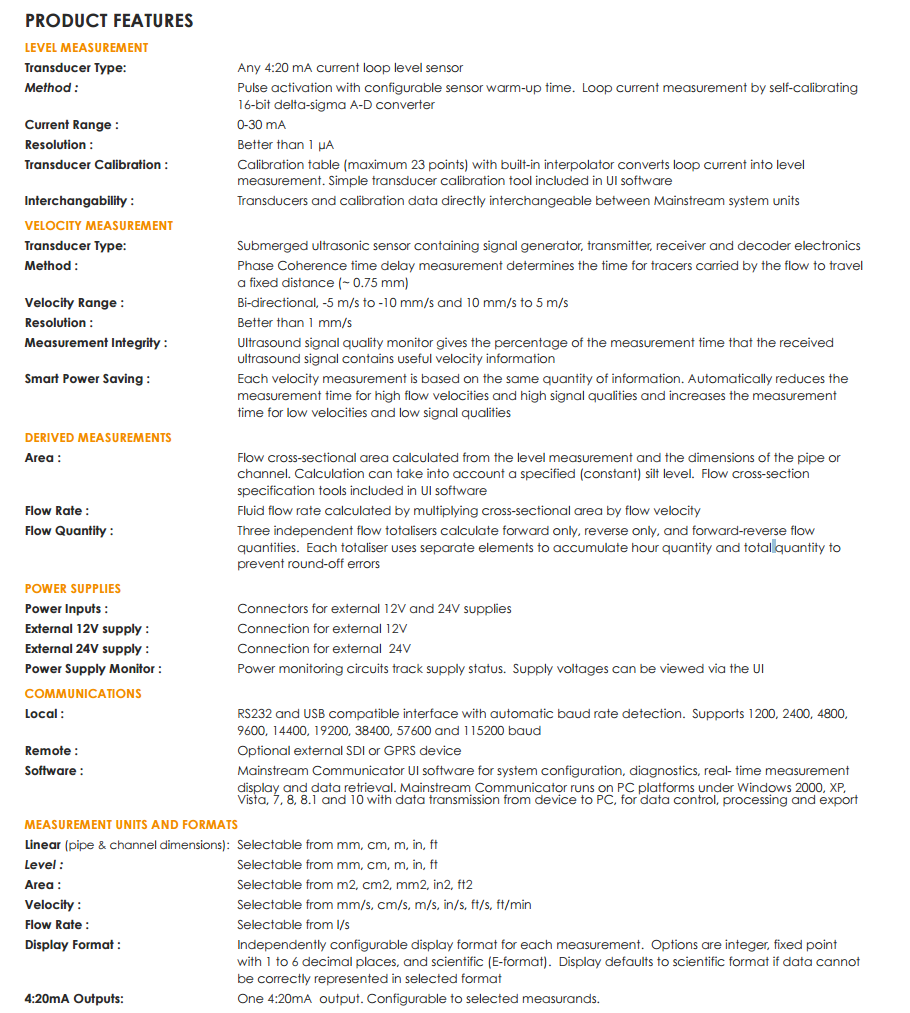

Specification

Downloads
