Non Contact Radar Velocity Open Channel Flow Meter Kit

SKU: RVS-30-KIT
Non-Contact Flow Meter & Remote Display
Open Channel Measurement
Radar velocity sensor
Ultrasonic level sensor
2 Channel digital display and controller
  • £4995.00
  • £5994.00 inc VAT
Qty:

Description

  • SKU
    RVS-30-KIT
Non-Contact Flow Meter & Display
Open Channel Measurement
Radar velocity sensor
Ultrasonic level sensor
2 Channel digital display and controller

Includes:
  • Radar velocity sensor & Ultrasonic level sensor
  • 2 Channel digital display and controller

This non contact flow meter is ideal for measurement in open channels especially in sluries and fluids with large solid contents.
Consisting of the ultraosnic level sensor, radar velocity sensor and digital controller to calulate volumetric flow based the liquid depth,
velocity and cross-sectional area of the channel.

GDC Display and Controller
  • Two channel input
  • 110/220VAC powered (Optional 24VDC)
  • Two SPDT relay outputs (option for four relays)
  • Analog 4-20mA output
  • RS485 Modbus output

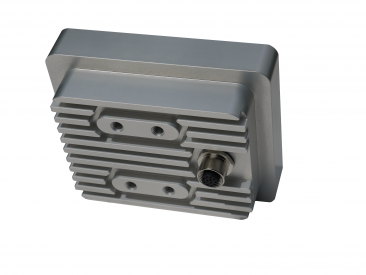

Radar Velocity Sensor
  • Non-Contact measurement
  • Detection distance: 50m
  • Range: 0.02 - 15 m/s
  • Accuracy: ± 0.02 m/s
  • Extra-large measuring angle: 12° Azimuth, 24° Elevation;
  • IP68 protection
  • RS485 Modbus RTU interface
  • 9-27 VDC power



Ultrasonic Level Sensor
Non-contact level detection
PVDF sensor face for aggressive chemicals
10m standard range (optionally 15m or 20m)
automatic temperature compensation
IP68 prtoection
±0.25% FS accuracy
24VDC powered
Standard 3m cable

Specification

    GDC Display and Controller

    RVS-30 Radar Velocity Sensor







    UL7 Ultrasonic Level Sensor
