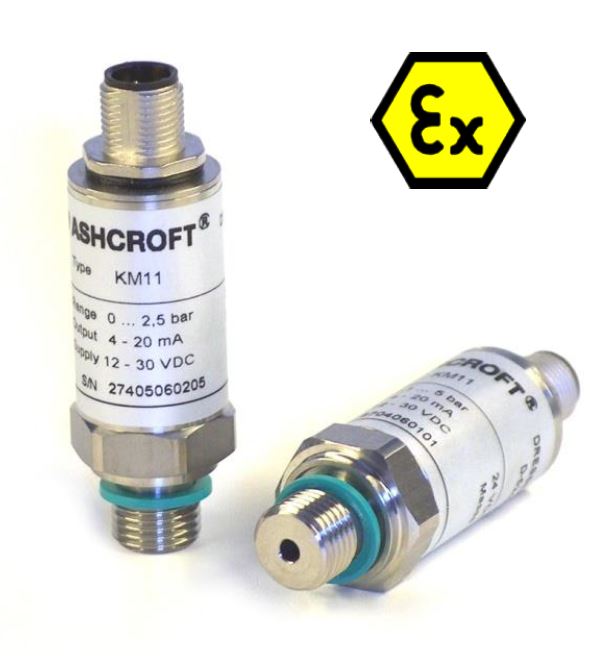

Pressure transmitter, I.S - Atex II 2G EEx ia IIC T4, range 0-100 barG, with 4-20mA O/P

SKU: KM1142050100BARATEXMG9HM
Pressure transmitter 0-100 BarG
I.S - Atex II 2G EEx ia IIC T4
4-20mA Output
 Accuracy 0.5% FSD
Electrical Connection = DIN connector
1/4 inch BSP male process connection
  • £195.00
  • £234.00 inc VAT
Qty:

Description

  • Weight
    0.1200 kg
  • SKU
    KM1142050100BARATEXMG9HM

Pressure transmitter 0-100 BarG
I.S - Atex II 2G EEx ia IIC T4
4-20mA Output
 accuracy 0.5% FSD
Electrical Connection = DIN connector
1/4 inch BSP male process connection

Stainless Steel Pressure Transducer utilizing thinfilm technology and CMOS ASIC withh EEPROM Data Storage, suitable for a wide range of hazardous area applications including those found in Automation, Hydraulic Systems, Process Control, oem design and production testing.

Features:

Rugged stainless steel construction
High over-pressure limits
High shock and vibration stability
Insensitive to temperature shocks
Protection IP65 or IP68
Explosion proof (intrinsically safe) for zone 1 and 2 acc. ATEX
