Water proof IP68 Model with 750mm cables fitted
Stainless Steel Mounting bracket included

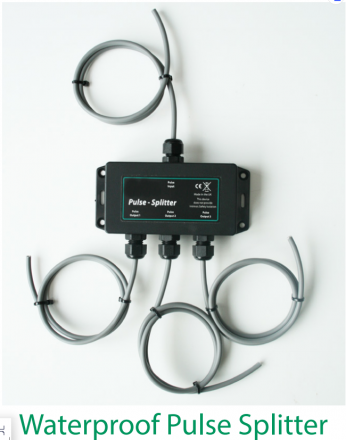

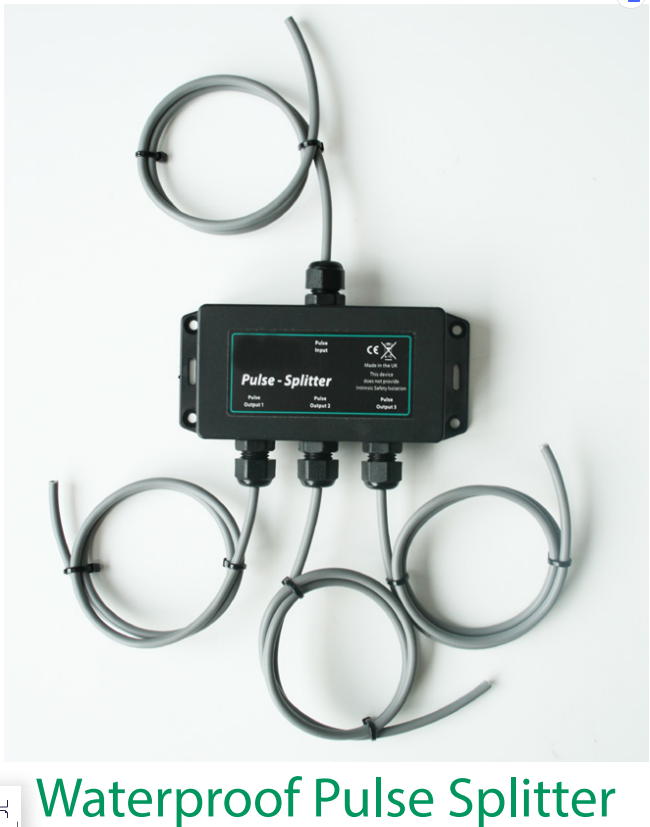

The EN-PS-WP splitter can be used with electric, gas, water meters or in fact any
meter with a pulse output (Volt-free contact, Reed relay or Open-collector).
EN-PS pulse splitters are completly passive
devices, meaning there are no batteries. The
device is powered from the attached logger.
Min Voltage (Logger)..........................1.2V
Input Pulse Types.....Open Collector or Reed
Min Voltage (Logger)..........................1.2V
Max Voltage (Logger)..........................24V
