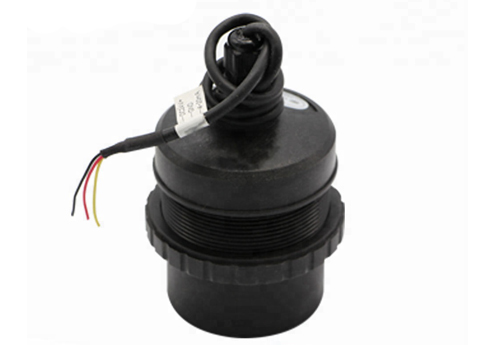

Ultrasonic Level Sensor 0-7 Metre Range, 4-20mA - 12V DC

SKU: BFL740-7

Ultrasonic Level Sensor 0-7 Metre Range
4-20mA (2 wire) - 12V DC Power
Accuracy +/- 0.5% F.S
350mm Deadband
Beam Angle 12º
IP67 Rating

  • £246.00
  • £295.20 inc VAT
Qty:

Description

  • SKU
    BFL740-7

Ultrasonic Level Sensor 0-7 Metre Range


4-20mA (2 wire) - 12V DC Power
Accuracy +/- 0.5% F.S
350mm Deadband
Beam Angle 12º
IP67 Rating (IP68 Optional)
Operating Temp 0-50 ºC
M68x2 mm Thread
55K±10Khz Operating Frequency
PP Housing Construction
1M Flying Lead

Alternative Outputs on request: 0-5V,0-10V,0-20mA,4-20mA(3-wire),RS485

The BFL740 Ultrasonic Level Sensor is temperature stabilized, providing repeatable results and reliable peformance.
It's lightweight, yet rugged design ensures suiatbility in a wide range of applications.

Specification

    Ultrasonic Level Sensor 0-7 Metre Range


    4-20mA (2 wire) - 12V DC Power
    Accuracy +/- 0.5% F.S
    350mm Deadband
    Beam Angle 12º
    IP67 Rating (IP68 Optional)
    Operating Temp 0-50 ºC
    M68x2 mm Thread
    55K±10Khz Operating Frequency
    PP Housing Construction
    1M Flying Lead

    Power consumption : 0.24W
    Response time : 1.5 - 3 seconds

    Suitable for water, fuel, oil, chemicals


    Alternative Outputs on request: 0-5V,0-10V,0-20mA,4-20mA(3-wire),RS485

    The BFL740 Ultrasonic Level Sensor is temperature stabilized, providing repeatable results and reliable peformance.
    It's lightweight, yet rugged design ensures suiatbility in a wide range of applications.
